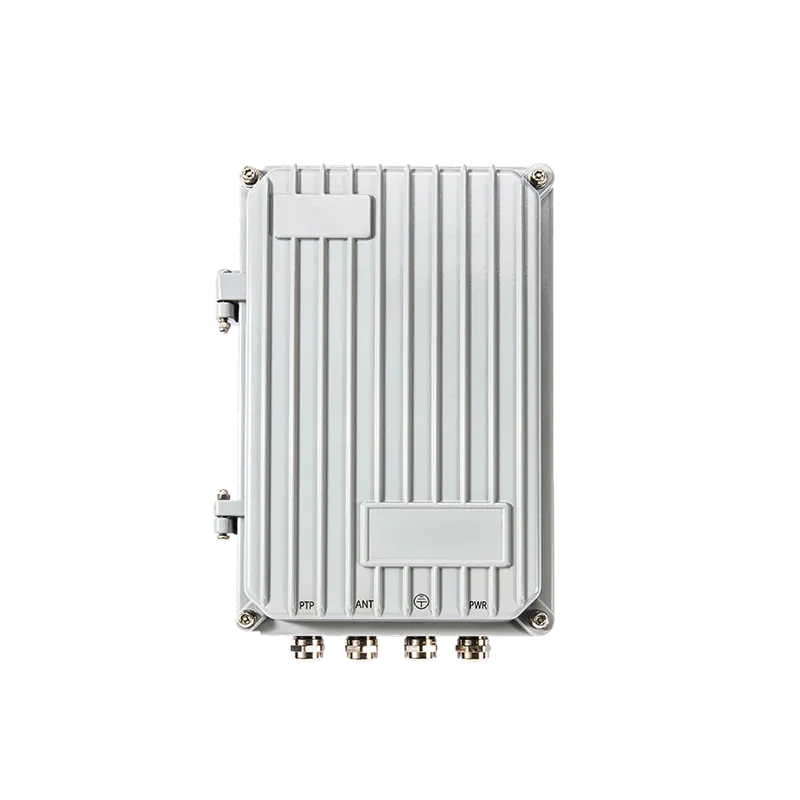

Outdoor PTP Server

Product Overview

The LF7310 is a high-performance outdoor PTP server, meticulously designed and independently developed over many years of experience. It offers stable operation, minimal transmission error, and easy installation. Its waterproof design makes it suitable for installation in harsh outdoor environments and has been widely used in related fields.

Features:

Waterproof housing (IP65)

Beidou/GPS/Glonass signal source input

Provides two PTP optical outputs, supporting bidirectional communication over a single fiber

Supports in-band management and SNMP

Provides high-precision timekeeping

FCC and CE certified

Main Applications:

Outdoor 1588 GM deployment

Technical Indicators

Project		Technical Specifications
PTP	Timing Accuracy	<±50ns
Timekeeping Function	24-hour Performance Retention	<±10us
Protection Rating		IP65
Power Supply		85~265V (AC) / 100~370V (DC) Single Power Supply
Power Consumption		≤15W
Environmental Adaptability	Operating Temperature	-40°C~70°C
	Storage Temperature	-40°C~70°C
	Humidity	0~95%
Dimensions (H x W x D)		306mm x 204mm x 105mm
Weight		<3.5kg
