Time Code Generator

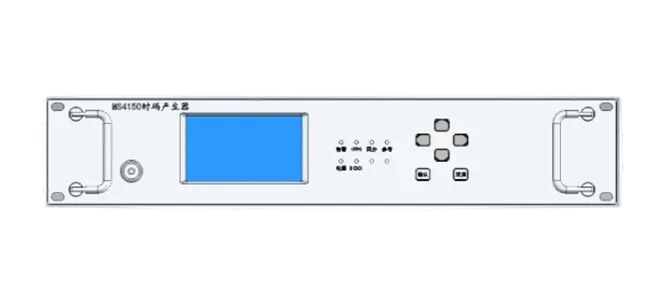

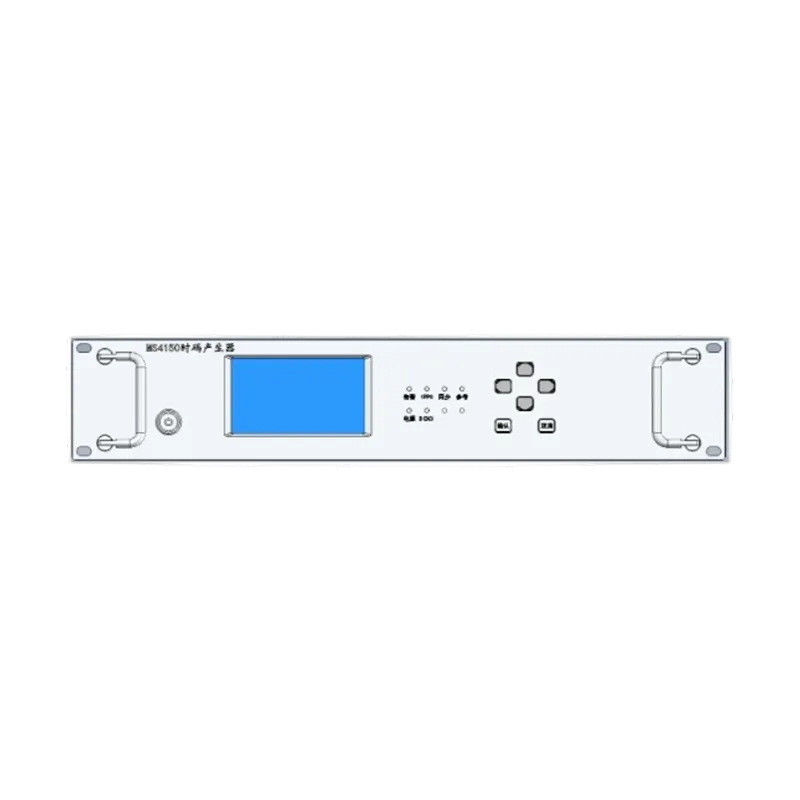

The MS4150 time code generator is a high-performance pulse signal switching product. It consists of a host device and monitoring software. Its basic function is to receive an external 10MHz reference frequency to generate accurate and stable 1PPS, B-code, NTP, and PTP time signals. It can also obtain national standard time by receiving external 1PPS and TOD references. When an external reference is unavailable, the integrated atomic clock/high-stability crystal oscillator maintains national standard time for a specified period of time. System time information can be distributed to all lower-level subsystems via SNMP network management protocol messages, and it can generate locally referenced 1PPS, B-code, NTP, and PTP signals. Supporting software provides device monitoring and configuration management. The MS4170 pulse time code switcher comes in a 2U rack-mountable chassis with a built-in display, LED panel, keypad, time and frequency mainboard, and power supply module.
