Multi-Channel Counter

Product Overview

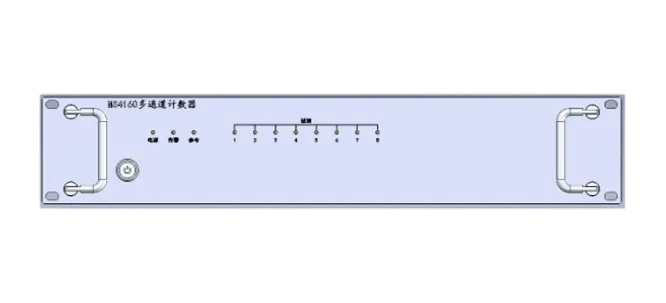

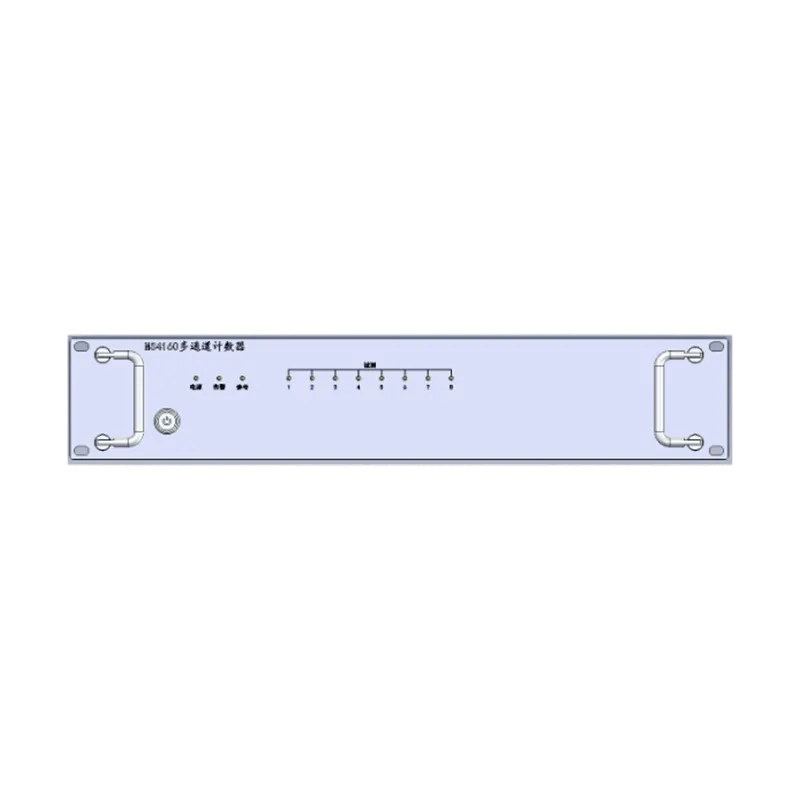

The MS4160 multi-channel counter is an instrument based on the principle of high-precision time difference measurement, utilizing digital technology to perform pulse measurement. The device consists of a main unit and monitoring and data processing software. Its basic function is to analyze the relative time deviation of the measured signal. It can accept an external signal source as a reference to perform phase comparison and measurement between multiple pulse signals. The accompanying software provides device monitoring, configuration management, file generation, and storage. The MS4160 multi-channel counter comes in a 2U rack-mountable chassis and houses a built-in light board, time difference measurement module, and power supply.

Basic Functions:

Accepts 8 external measurement signal inputs;

Accepts one external 10MHz reference input for frequency source calibration;

Provides network and serial port monitoring capabilities;

Features user-friendly host software for real-time acquisition, processing, and storage of measurement results.

Technical Indicators

Project	Indicator Item	Indicator Content
Number of Measurement Channels		8 Channels
★Measurement Resolution		≤30ps
★Measurement Uncertainty		≤100ps
External Reference Interface	10MHz	1-channel
Management Interface	Network Port	RJ-45 1-channel
Management Interface	Serial Port	RS232 1-channel
Power Supply	AC Power Supply	AC220V±22V, 50Hz±1Hz
Power Supply	Power Consumption	≤30W
Environmental Adaptability	Operating Temperature	-20℃ ~ +60℃
Environmental Adaptability	Storage Temperature	-40°C ~ +75°C
Physical Characteristics	Dimensions	430mm450mm88mm (Standard Cabinet 2U)
