Time Code Switcher

Product Overview

The MS4170 time code switcher is a high-performance pulse signal switching product. It consists of a main unit and monitoring software. Its basic functions include isolating two 1PPS and two B-code inputs and amplifying and outputting eight 1PPS and eight B-code signals, offering high channel consistency and low switching latency. The accompanying software provides device monitoring and configuration management.

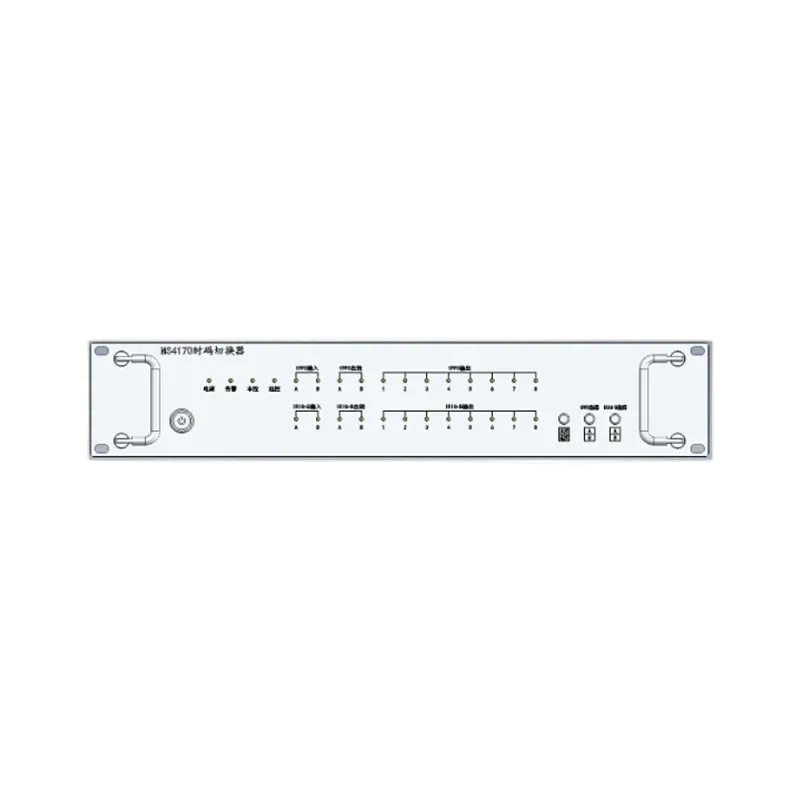

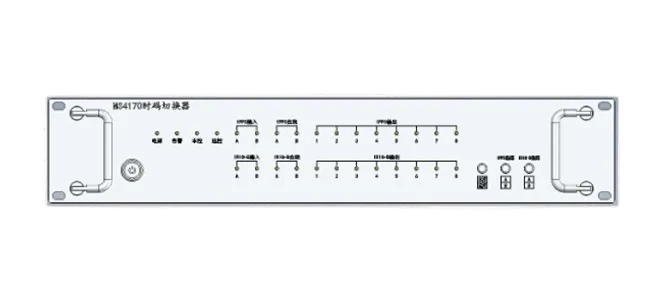

The MS4170 pulse time code switcher comes in a 2U rack-mountable chassis and features a built-in key display module, a time and frequency processing module, and a power supply module.

Basic Functions:

Receives two external 1PPS and two B-code signal inputs with ultra-low switching time.

Outputs eight 1PPS and eight B-code signals with high channel consistency.

Provides network and serial port monitoring capabilities.

Features user-friendly host software for monitoring and configuration.

Technical Indicators

Project	Indicator Item	Indicator Content
Switching Time		≤10us
Input Interface	1PPS	2 Channels
Input Interface	IRIG-B (DC)	2-way
Output Port	1PPS	8-way
Output Port	IRIG-B (DC)	8-way
Management Port	Network Port	RJ-45 1-way
Management Port	Serial Port	RS232 1-way
Power Supply	AC Power Supply	AC220V±22V, 50Hz±1Hz
Power Supply	Power Consumption	≤20W
Environmental Adaptability	Operating Temperature	-20°C ~ +60°C
Environmental Adaptability	Storage Temperature	-40°C ~ +75°C
Physical Characteristics	Dimensions	430mm450mm88mm (Standard Cabinet 2U)
