TS8000 Expansion Box

Product Overview

The RS422 expansion box is a multi-channel signal generator. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple RS422 output signals locally.

The NTP expansion box is a multi-channel NTP service expansion device. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple NTP output signals locally.

Features:

Standalone 1U, standard 19-inch design

Standard RJ45 output port

Centralized management via the TS8000 master clock

Patented bus expansion technology supports up to 15 cascaded expansion units

Technical Indicators

Project	Technical Specifications
Input Signal	RS422 Expansion Box	NTP Expansion Box
	Master Clock Bus
Output Signal	RS485/422	NTP
Number of Interfaces (Per Unit)	16	10
Management Port	RS232 Serial Port
Power Supply	220V (AC) Single-Channel Configuration
Power Consumption	≤15W
Environmental Adaptability	Operating Temperature	-10℃~60℃
	Humidity	0-95%, non-condensing
Dimensions (H × W × D)	44mm × 443mm × 290mm
Weight	≤2kg

Related News

Oct. 28, 2025

Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

CNOOC recently successfully overcame the world-class challenge of developing offshore reef limestone oil fields. This breakthrough was achieved thanks to SYNC's chip-based atomic clocks, which provide high-precision time and frequency support for its submarine exploration equipment.

Learn More +

Oct. 28, 2025

The Importance of Time Synchronization Servers in the Financial Sector

With the continuous advancement of technology, the financial industry is undergoing a continuous digital transformation. In this process, the application of time synchronization technology has become particularly important. As an efficient and reliable time synchronization device

Learn More +

Oct. 28, 2025

Core Select Products | Crystal Oscillators: The Hidden "Intelligent" Power of Industrial Control

At the world's first humanoid robot games, every precise turn and every flawless coordination showcased the latest breakthroughs in industrial intelligence. Behind these astonishing technological feats lies a beating heart: an industrial-grade crystal oscillator.

Learn More +

Related PRODUCTS

Digital Slave Clocks

TS8000-NMS

Master/Slave Clock System Network Management

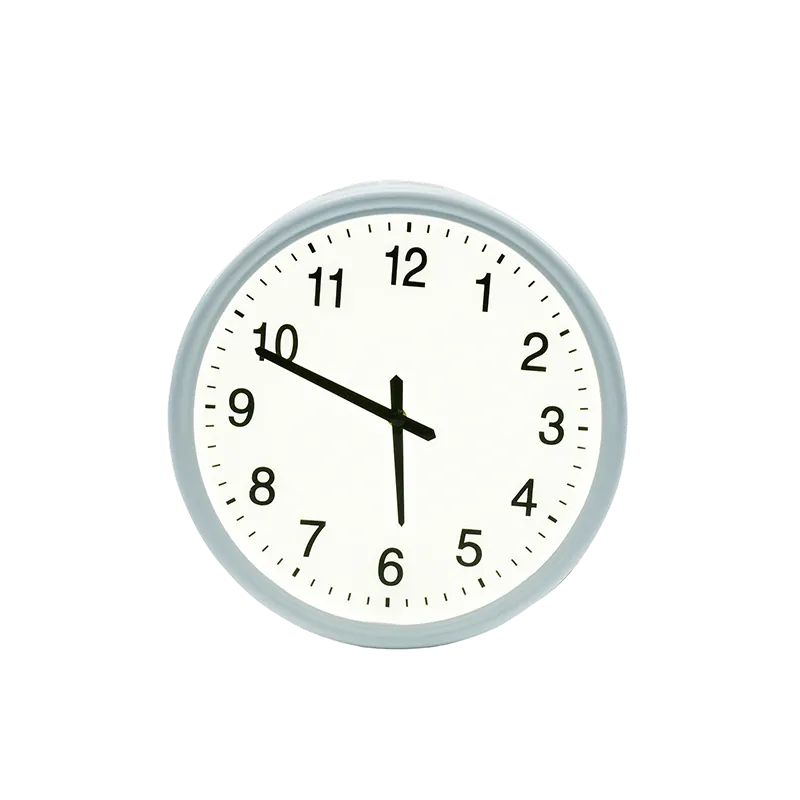

Analog Slave Clocks
