10 Gigabit NTP Server

Product Overview

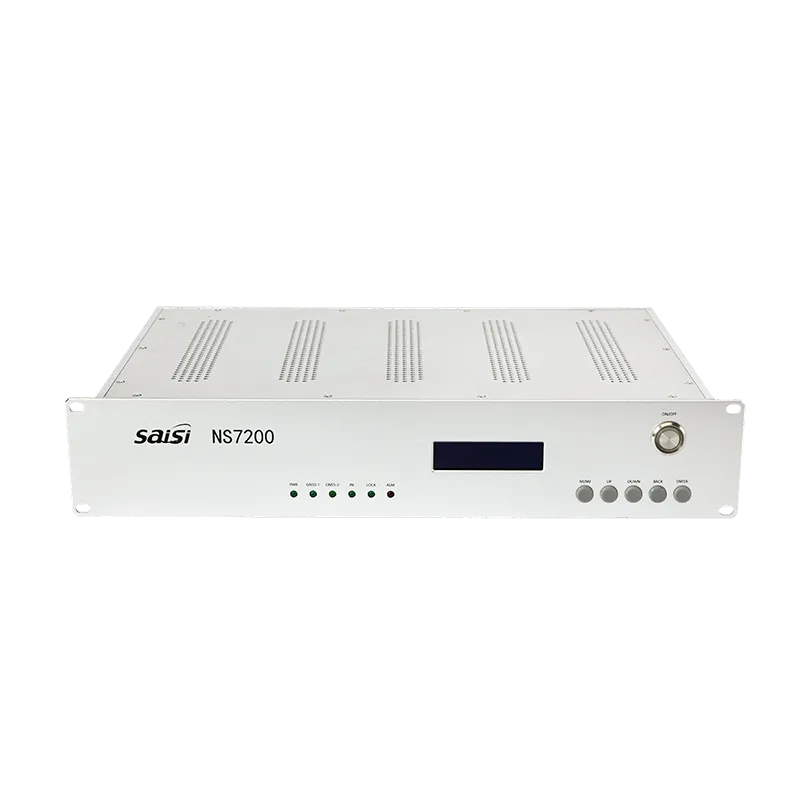

The NS7200 (2U) is a high-end 10 Gigabit NTP time server designed for high reliability, high security, and large capacity.

Features:

Supports two GPS/Beidou dual-mode satellite inputs and CDMA timing input

Provides four NTP outputs (10GE interfaces)

Supports audio and video interfaces and external keyboard/mouse operation

Built-in lithium battery, ensuring continued output even after power failures

Supports heartbeat detection and port bonding

NTP port processing capacity exceeding 50,000 times/second

Main Applications:

Suitable for scenarios requiring high system capacity and security, such as banking, securities, and public security.

Technical Indicators

Project	Technical Specifications
PPS	Timing Accuracy	≤10ns(RMS)
10MHz	Frequency Accuracy	<5.0E-13 (Locked, 24-hour average)
10MHz	Frequency Stability	≤3.0E-12
NTP	Timing Accuracy	<1ms
NTP	Number of Responses	50,000 times/second
Timing Unit	Daily Aging Rate	≤4E-13
Timing Unit	24-Hour Timing	≤500ns
Management Port	RS232 Serial Port, RJ45 Network Port
Power Supply	220V (AC) Redundant Configuration
Power Consumption	≤80W
Environmental Adaptability	Operating Temperature	-10℃~+60℃
Environmental Adaptability	Humidity	0~95% (non-condensing)
Dimensions (H × W × D)	88mm × 465mm × 290mm
Weight	≤6kg
