TS8000 Expansion Box

Product Overview

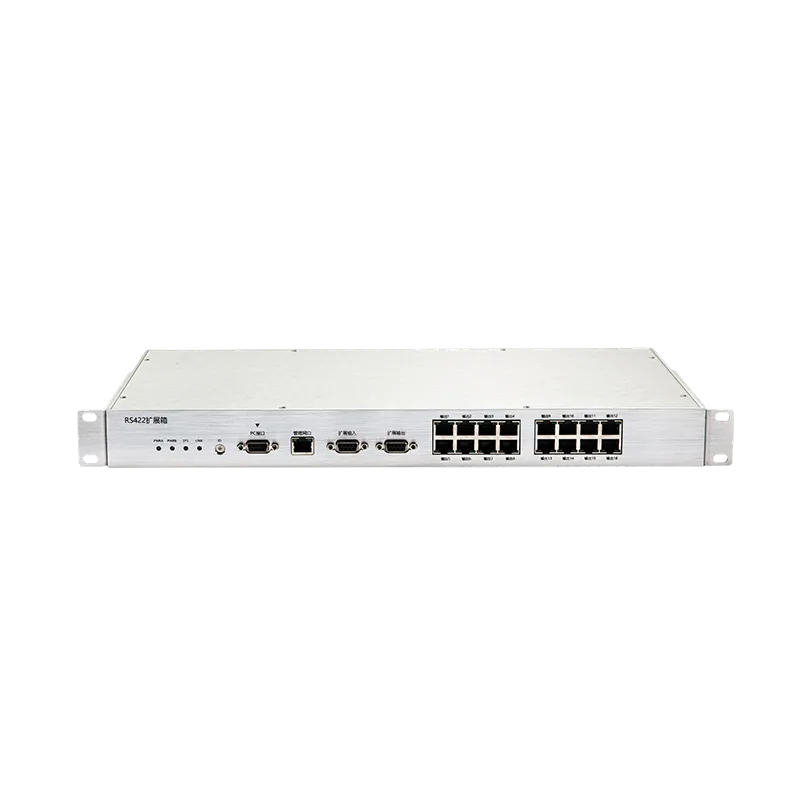

The RS422 expansion box is a multi-channel signal generator. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple RS422 output signals locally.

The NTP expansion box is a multi-channel NTP service expansion device. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple NTP output signals locally.

Features:

Standalone 1U, standard 19-inch design

Standard RJ45 output port

Centralized management via the TS8000 master clock

Patented bus expansion technology supports up to 15 cascaded expansion units

Technical Indicators

Project	Technical Specifications
Input Signal	RS422 Expansion Box	NTP Expansion Box
	Master Clock Bus
Output Signal	RS485/422	NTP
Number of Interfaces (Per Unit)	16	10
Management Port	RS232 Serial Port

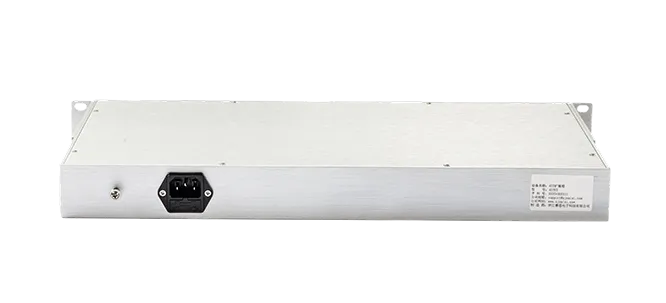

Power Supply	220V (AC) Single-Channel Configuration
Power Consumption	≤15W
Environmental Adaptability	Operating Temperature	-10℃~60℃
	Humidity	0-95%, non-condensing
Dimensions (H x W x D)	44mm x 443mm x 290mm
