Time and Frequency Synchronization Device/Network Synchronization Device/Bits Device

Product Overview

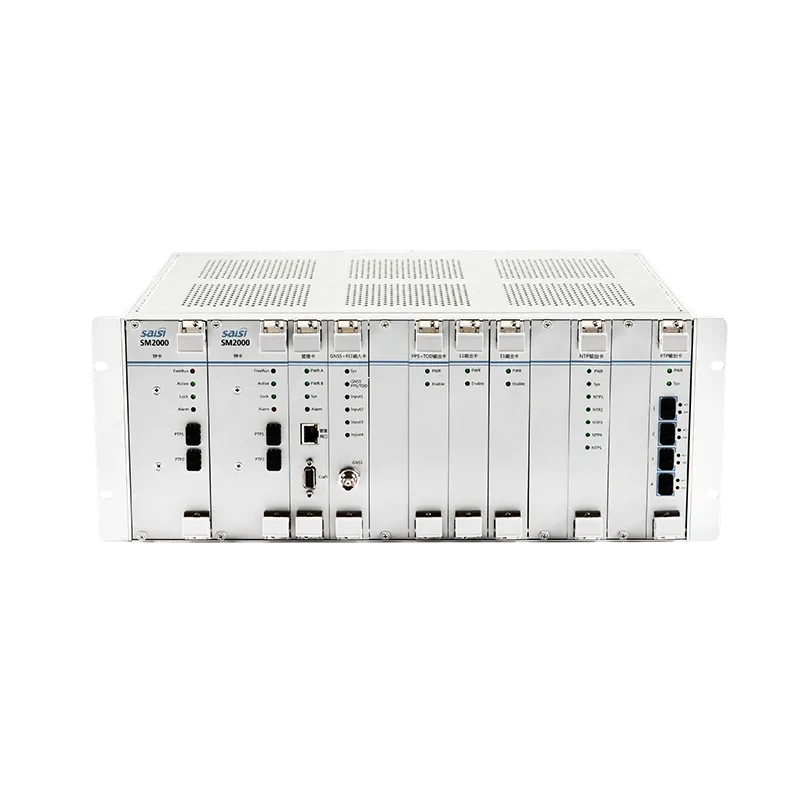

The SM2000 is a carrier-grade, high-precision network synchronization device/time and frequency fusion platform that supports IEEE 1588. It utilizes digital phase-locked loop (DLLL) technology and an independent timing algorithm based on an FPGA (field programmable gate array) to provide high-precision and reliable time and frequency reference signals. The device provides a reference clock source compliant with ITU-T G.811 and G.812 standards; a traditional 2Mbit/2MHz frequency synchronization signal; and time outputs such as PPS+TOD, NTP, and PTP.

Features:

Supports IEEE 1588v2 and provides Layer 2/Layer 3 PTP output

Supports hot-swappable cards and expansion chassis

Passes Level 1, 2, and 3 network access tests by the Ministry of Industry and Information Technology

Passes Level 7, 8, and 9 earthquake resistance tests by China Telecommunication Technology Laboratory

Passes low-pressure testing, suitable for use in plateau areas

Supports CLI, SNMP, and TLI configuration and management

Main Applications:

Mobile operators' communication synchronization networks, power system communication synchronization networks, rail transit, and other synchronization scenarios.

Technical Indicators

Project		Technical Specifications
Timing Performance	Frequency Accuracy (Satellite Tracking)	±3.0E-13
	Frequency Accuracy (Free-Running)	±5.0E-11
	Pull-in Range	±2.0E-8
	Holdover Range	±2.3E-8
	Jitter	<0.01UI
	Drift	≤40ns/2day
	Holdover	≤-4.3E-12 (3.5days)
PTP Performance	Output Accuracy	<100ns
PTP Performance	Client Response Capacity	500client/s
Input Signal		GPS/Beidou Satellite Signal, E1, PTP, PPS+TOD
Output Signal		E1, PTP/NTP, PPS+TOD, 10MHz, IRIG-B
Extended Output		Supported
Management Port		RS232, RJ45
Network Management Protocol		Supports TL1, SNMP
Power Supply		-48V (DC), redundant dual power supplies
Power Consumption		<120W
Operating Environment	Temperature	-10℃~60℃
Operating Environment	Humidity	0~95% (non-condensing)
Dimensions (H × W × D)		177mm × 432mm × 287mm
Weight		≤10kg

Related News

Oct. 28, 2025

Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

CNOOC recently successfully overcame the world-class challenge of developing offshore reef limestone oil fields. This breakthrough was achieved thanks to SYNC's chip-based atomic clocks, which provide high-precision time and frequency support for its submarine exploration equipment.

Learn More +

Oct. 28, 2025

Core Select Products | Crystal Oscillators: The Hidden "Intelligent" Power of Industrial Control

At the world's first humanoid robot games, every precise turn and every flawless coordination showcased the latest breakthroughs in industrial intelligence. Behind these astonishing technological feats lies a beating heart: an industrial-grade crystal oscillator.

Learn More +

Oct. 28, 2025

The Importance of Time Synchronization Servers in the Financial Sector

With the continuous advancement of technology, the financial industry is undergoing a continuous digital transformation. In this process, the application of time synchronization technology has become particularly important. As an efficient and reliable time synchronization device

Learn More +

Related PRODUCTS

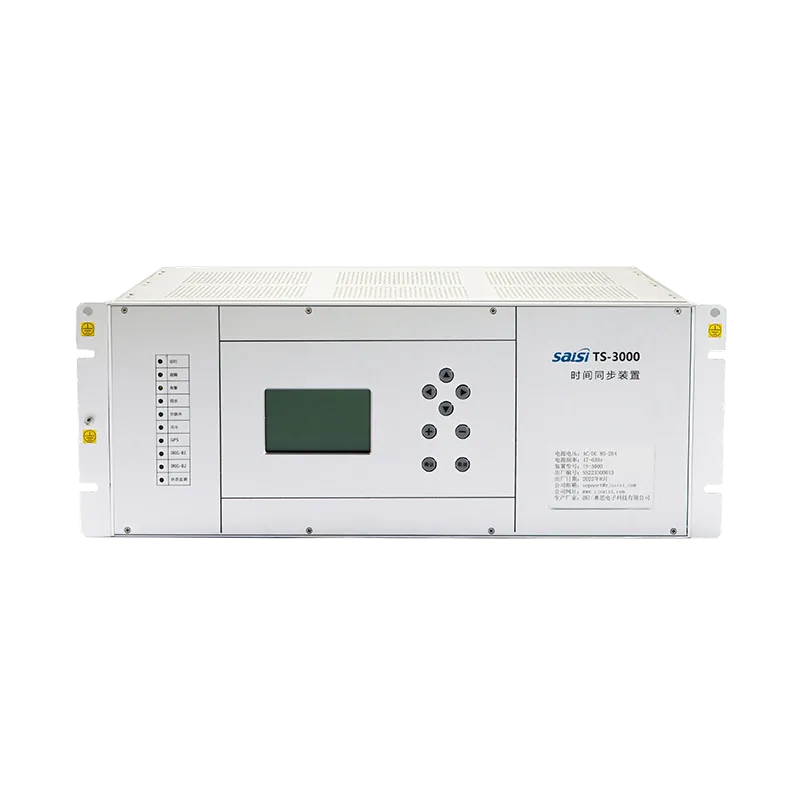

TS3000 (4U)

Power System Time Synchronizer

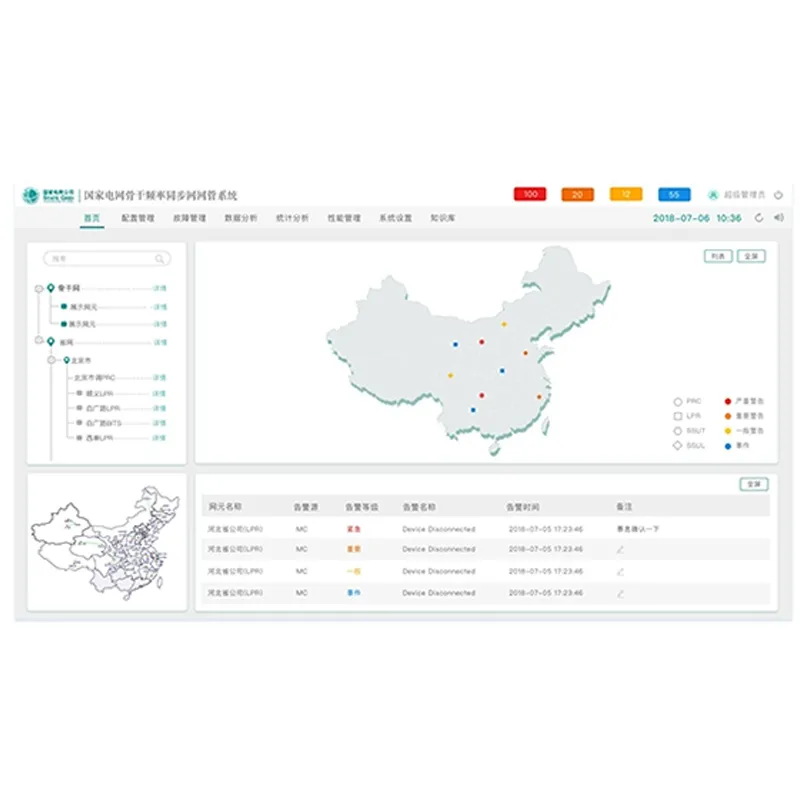

NMS (Network Management System)
