NTP Time Server

Product Overview

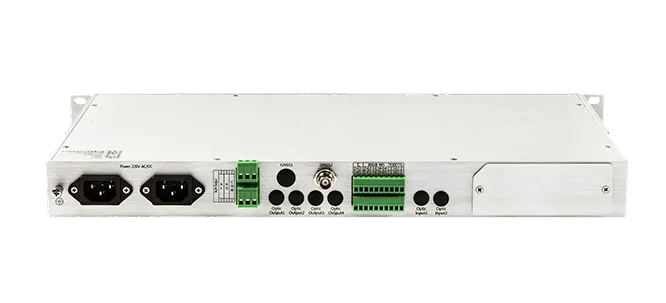

The TS3000 (1U) is a universal NTP server that supports NTP input and output interfaces. It tracks satellites or upstream input sources to provide standard NTP output to downstream devices. Other output time interface signals (PPS/PPM/PPH/PPD, TOD, IRIG-B, and DCF77) are also available.

Features:

Standard 19-inch 1U chassis design

Redundant power supply and satellite input for enhanced reliability

High-stability crystal oscillator (optional rubidium clock)

24/7 continuous operation

Extensive status display capabilities (LCD display and LED indicators)

Supports network centralized monitoring and management, with visual configuration management

Main Applications:

Power plants, rail transit, finance, hospitals, digital substations, smart cities, and other scenarios requiring network time synchronization.

Technical Indicators

Project		Technical Specifications
Satellite Receiver and Antenna	Receiver Sensitivity	Acquisition <-160dBm
	Receiver Sensitivity	Tracking <-163dBm
	Receiver Acquisition Time	Hot Start: 1s
	Receiver Acquisition Time	Cold start: 30s
	Receiver time accuracy	Better than 20ns (1PPS, relative to UTC)
	Receive antenna sensitivity	<-163dBm
NTP output	Timing accuracy	<1ms (port direct connection)
NTP output	Number of ports	5-port (RJ45, 10/100M auto-sensing)
Timekeeping Performance		≤1us/h (within 12 hours)
Power Supply	AC Power Supply	90~264V
	DC Power Supply	127~370V
	Power Supply Mode	Dual Power Supply
Power Consumption		≤20W
Environmental Suitability	Operating Temperature	-10°C to 60°C
Environmental Suitability	Humidity	0 to 95%, non-condensing
Dimensions (H × W × D)		44mm × 443mm × 322mm
Weight		≤2kg
