Master/Slave Clock System

Product Overview

The TS8000 is a high-precision clock product that combines a digital slave clock to form a master/slave clock system. It supports the IEEE 1588v2 protocol and pioneers the use of PTP for time synchronization between primary and secondary master clocks in rail transit applications, improving the overall accuracy of the clock system.

Features:

Supports dual-channel GPS and Beidou satellite inputs; supports RS422, PPS+TOD, NTP, and PTP (optional) signal inputs.

Unique FPGA timekeeping algorithm for industry-leading timekeeping capabilities.

Local maintenance software or network management platform for visual device configuration and management.

Main Applications:

Subways, trams, stadiums, hospitals, large train stations, airports, etc.

Technical Indicators

Project		Technical Specifications
Synchronization Performance	Stability	≤1×10-10
	Synchronization Timing Accuracy	±0.1us
	Accuracy	≤1×10-9
	Daily Fluctuation During Desynchronization	≤1×10-9
	Cumulative Error	±0.01 seconds/month (autonomous time)
	Master/Slave Clock Card Switchover Time	≤1us
Input Signal		GPS/Beidou Satellite Signal, PPS, TOD, RS422, NTP, PTP (Optional)
Output Signal		RS485/422, NTP, PTP (Optional), IRIG-B (Optional)
NTP request rate		1500 times/second
MTBF		≥200,000 hours
Management port		RS232, RJ45
Power supply		100-240V (AC), 47-60Hz, redundant configuration
Power consumption		≤20W
Operating Environment	Temperature	-10°C~60°C
	Humidity	0~95%, non-condensing
Dimensions		134×483×305mm(3U)
Weight		≤5kg

Related News

Oct. 28, 2025

Core Select Products | Crystal Oscillators: The Hidden "Intelligent" Power of Industrial Control

At the world's first humanoid robot games, every precise turn and every flawless coordination showcased the latest breakthroughs in industrial intelligence. Behind these astonishing technological feats lies a beating heart: an industrial-grade crystal oscillator.

Learn More +

Oct. 28, 2025

The Importance of Time Synchronization Servers in the Financial Sector

With the continuous advancement of technology, the financial industry is undergoing a continuous digital transformation. In this process, the application of time synchronization technology has become particularly important. As an efficient and reliable time synchronization device

Learn More +

Oct. 28, 2025

Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

CNOOC recently successfully overcame the world-class challenge of developing offshore reef limestone oil fields. This breakthrough was achieved thanks to SYNC's chip-based atomic clocks, which provide high-precision time and frequency support for its submarine exploration equipment.

Learn More +

Related PRODUCTS

TS3000

Modular NTP Server

TS3000 (1U)

NTP Time Server

TS3000 (4U)

Power System Time Synchronizer

NS7200 (2U)

10 Gigabit NTP Server

NTP/RS422

TS8000 Expansion Box

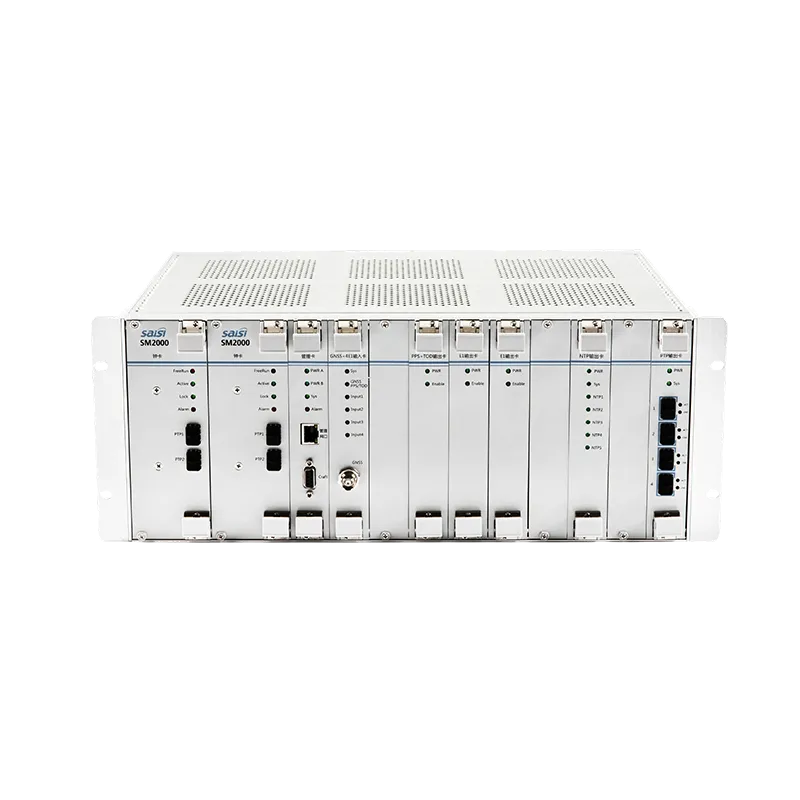

SM2000
