Saisi | Oven-controlled Crystal Oscillator (OCXO)

Product Overview

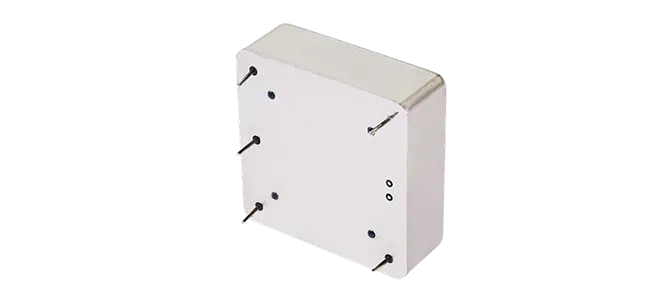

An oven-controlled crystal oscillator (OCXO) uses a constant-temperature oven to maintain the temperature of a quartz crystal resonator, minimizing fluctuations in the oscillator's output frequency caused by ambient temperature fluctuations.

Features:

Ultra-high stability, wide operating temperature range, low phase noise, low power consumption, compact design, and a comprehensive product line.

Main Applications:

Wired Communications

Wireless Communications

Power Grid

Industrial Control

Instrumentation, etc.

Technical Indicators

Model

Temperature Stability

Temperature Range

Waveform

Power Supply

Second Stability

Phase Noise Typ

Package

Frequency Range

Ultra-Low Noise

05050
03627
02525

≤±0.5ppb

-40~+70°℃
-55~+85℃

sine wave

12V

≤1.5E-13
≤8E-14

1Hz:-122dBc/Hz
10Hz:-147dBc/Hz
100Hz:-161dBc/Hz
1KHz:-165dBc/Hz
10KHz:-165dBc/Hz
100KHz:-165dBc/Hz
1MHz:-168dBc/Hz

DIP50*50*15mm
DIP36*27*12.7mm
DIP25*25*12.7mm

5MHz~100MHz

0362702525

≤±5ppb

-40~+85℃
-55~+105℃

sine wave

5V
12V

≤8E-12

1Hz:-80dBc/Hz
10Hz:-113dBc/Hz
100Hz:-146dBc/Hz
1KHz:-168dBc/Hz
10KHz:-181dBc/Hz
100KHz:-188dBc/Hz
1MHz:-188dBc/Hz

DIP36*27*12.7mm
DIP25*25*12.7mm

80MHz~120MHz

01409

5V
3.3V

≤2E-11

10Hz:-105dBc/Hz
100Hz:-135dBc/Hz
1KHz:-162dBc/Hz
10KHz:-175dBc/Hz
100KHz:-178dBc/Hz
1MHz: -178dBc/Hz

SMD
14.4*9.5*6.5mm

Model

Temperature Stability

Temperature Range

Waveform

Power Supply

Daily Aging

Phase Noise @ 10MHz Typ

Package

Frequency Range

Ultra-high stability

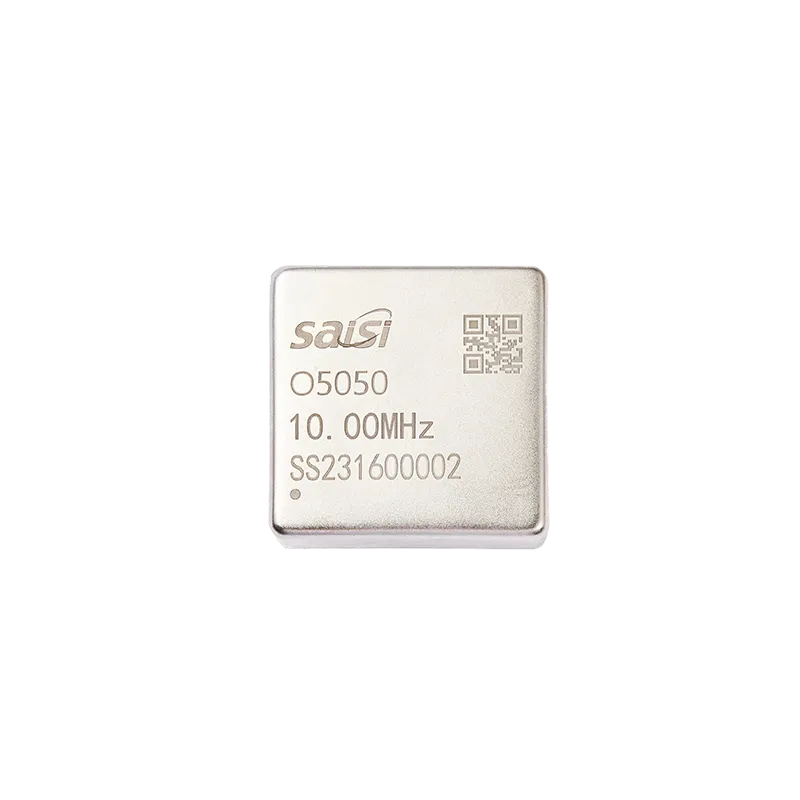

05050

≤±0.01ppb

-40~+70℃
-55~+85℃

Sine Wave
Square Wave

5V
12V

≤±0.05ppb

-150dBc/Hz@1kHz

DIP 50.8*50.8*15.0mm

5MHz~200MHz

03627

≤±0.1ppb

-40~+85℃
-55~+105℃

Sine wave
Square wave

3.3V
5V
12V

≤±0.1ppb

-150dBc/Hz@1KHz

DIP 36.2*27.2*12.7mm

5MHz~200MHz

0252502522

≤±0.2ppb

-40~+85°C
-55~+105°°C

sine wave
square wave

3.3V
5V
12V

≤±0.2ppb

-155dBc/Hz@1KHz

DIP 25.4*25.4*12.7mm
SMD 25.4*22*12mm

5MHz~200MHz

02020

≤±0.5ppb

-40~+85°C
-55~+105°°C

sine wave
square wave

3.3V
5V
12V

≤±0.5ppb

-155dBc/Hz@1KHz

DIP 20.2*20.2*10mm

5MHz~200MHz

Model

Temperature Stability

Temperature Range

Waveform

Power Supply

Daily Aging

Phase Noise @ 20MHz Typ

Package

Frequency Range

Miniaturization
Surface-mounted

01409

≤±2ppb

-40~+85℃
-55~+105℃

Sine wave
Square wave

3.3V
5V

≤±1ppb

-155dBc/Hz@1KHz

SMD14.4*9.5*6.5mm

5MHz～100MHz

00907

≤±10ppb

-40~+85℃
-55~+105℃

square wave

3.3V
5V

≤±1ppb

-162dBc/Hz@1KHz

SMD 9.7*7.5*3.9mm

9.6MHz~100MHz

00705

≤±10ppb

-40~+85℃
-55~+105℃

square wave

3.3V
5V

≤±1ppb

-162dBc/Hz@1KHz

SMD 7.7*5.5*3.3mm

19.2MHz~48MHz

Model

Temperature Stability

Temperature Range

Waveform

Power Supply

Aging in Years

Static Phase Noise @ 100MHz Typ

Dynamic Phase Noise @ 100MHz Typ

Package

Frequency Range

Vibration Resistance

09282

≤±50ppb

-40~+85℃
-55~+105℃

sine wave

5V
12V

≤±200pb

100Hz:-135dBc/Hz
1KHz:-160dBc/Hz
10KHz:-170dBc/Hz
100KHz:-175dBc/Hz

100Hz:-130dBc/Hz
1KHz:-160dBc/Hz
10KHz:-165dBc/Hz
100KHz:-168dBc/Hz

DIP92*82*92mm

10MHz~120MHz

0362702525

≤±50ppb

-40~+85℃
-55~+105℃

Sine Wave

5V
12V

≤±200pb

100Hz: -135dBc/Hz
1KHz: -160dBc/Hz
10KHz: -170dBc/Hz
100KHz: -175dBc/Hz

G-Sensitivity (X, Y, Z axis):
≤0.2ppb/g (Low Profile)
≤0.1ppb/g (Medium Profile)
≤0.05ppb/g (High Profile)

DIP36*27*15.5mm
DIP25*25*12.7mm

10MHz~120MHz

Model

Characteristics

Temperature Range

Waveform

Power Supply

Phase Noise @10MHz Typ

Package

Frequency Range

Clock Module

D5050
D6565

≤±1.5us/24h
△T=±10℃

-40~+85℃
-55～+105℃

Square Wave
Sine Wave

1KHz:-155dBc/Hz

DIP50*50*18mm
DIP65*65*18mm

5MHz~25MHz

D3627

≤±1.5us/24h
△T=±2℃

-40～+85℃
-55～+105℃

square wave
sine wave

5V
3.3V

1kHz: -155dBc/Hz

DIP 36.2*27.3*15mm

5MHz~10MHz

3-minute fast accelerometer f-T≤±0.5ppb
Shock-resistant dual output

-40~+85℃
-55~+105℃

Square wave
Sine wave

5V
3.3V

1KHz:-155dBc/Hz@10MHz
1KHz:-153dBc/Hz@160MHz

DIP 36.2*27.3*13mm

8.192MHz~200MHz

≤±50us/24h
△T=40℃

-40~+85℃
-55~+105℃

square Sine Wave
Sine Wave

5V
3.3V

1KHz:-155dBc/Hz

DIP 20*20*13mm

8.192MHz~40MHz

D2020

Disciplined Crystal Oscillator
f-T≤±5ppb

-40～+85℃
-55~+105℃

Square Sine Wave

5V
3.3V

1KHz:-143dBc/Hz@160MHz

DIP20*20*7mm

8.192MHz~200MHz

	Model	Temperature Stability	Temperature Range	Waveform	Power Supply	Aging	Phase Noise		Package	Frequency Range
Product Report Module	0338	5±1pb	40~+B5℃ 5~4105℃	Square Wave Sine Wave	3.3V W 12V	±20pB	Phase Noise 11CNItTyP 10-2: -130dBcH 10kHz -145dB/Hz 1kHz -160dB/Hz 00Hz -165dB/Hz 10CNHL -165dB/Hz	Phase Noise 2@100MHz Typ 100Hz:-95dBc/Hz 100Hz:-130dBc/Hz 1KHz:-160dBc/Hz 10KHz:-172dBc/Hz 100KHz:-175dBc/Hz	DAP38"30"13mm	5MHr~20MHz
Product Report Module	04560	Soil 0.2ppb	40~+85℃ 55~+105℃	Fang liquid Zhengjia wave	3.3V 5W 1ZV	±20psb	Xiangde 925NHz Typ 10Hz:130dBcH 0Ctr-145dBeH 1KHz:-160dBC/Hz 1080Hz-175d8c bit 100KIL-175dBcz		SMA45*60"16mm	5NH~190MHz
